QUATTRO

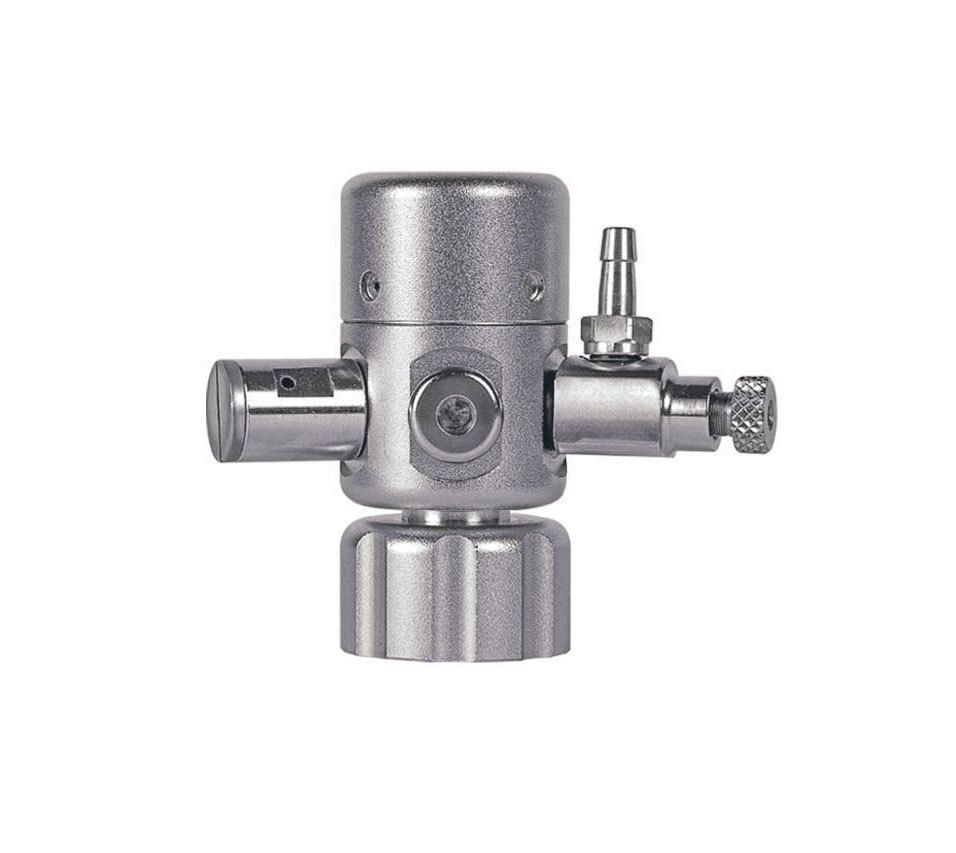

:: CO2000 Professional Pressure Regulator (Multi EXIT)

ELOS CO2000 is the first world-wide pressure regulator with multiple CO2 outputs. That means that, besides the installation of two manometers (ELOS Control H and L) to verify the high and the low pressures, it will be possible to install three extra needle valves (ELOS Spillo) thus extending the CO2 supply up to three equipment that can then be separately controlled, without any influence one to each of the other. The use of "fast connection system" simplifies the connection-disconnection of the equipment to the CO2 bottle, for an unsurpassed simplicity and flexibility. The supplied ELOS RING permits the use of the regulator with the CO2 Cylinder available on the market (DE-Connection) as well as to our One-Way CO2 cylinders.

HIGHLIGHTS:

• First pressure reducer world-wide with three exits offers extension up to two manometers and three additional needle valves
• Uses the latest (most modern) fast connection system
• Grants maximum security and precise control (Piston System)
• Brings up simultaneously CO2 supply and separates controlling of several aquariums
• Equipped with micro-filter and safety valve
• Provides untended modifications of adjusted bubble frequency

TECHNICAL DATA:

• nominal pressure: 160 bar
• working low pressure: 3.5 bar
• connection for manometer: 1/8 G, other connections: 1/8 G
• fitting Valve: stainless steel valve spindle
• connections: IN-let for Elos CO2-cylinder, OUT-let for CO2-hose 4 x 6 mm
• micro filter: integrate
